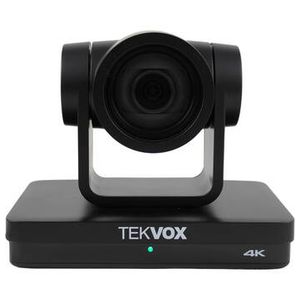

TEKVOX 4K HDBaseT PTZ Auto-Tracking Ultra Camera w
Product Description
The 4K HDBaseT PTZ Auto-Tracking Ultra Camera with Receiver Unit from TEKVOX provides you with a high-resolution PTZ camera and a receiver that expands its available interfaces in your classroom or office A/V configuration The camera features a 1/28 826MP CMOS sensor with 12x optical zoom capable of recording up to 4K30 video An HDBaseT output port connects the camera to the included receiver unit via single cable connection which provides power to the camera and adds HDMI - USB - LAN - RS-232 - IR - and audio I/O connections to the device An ISP algorithm and facial recognition capabilities provide fast and accurate tracking Program up to 255 presets for precise camera movements Settings and video preview can be accessed via HTML5 web GUI
Features: 1/2.8-inch 8.29MP CMOS Sensor, Captures up to 4K30 Video, Single-Cable HDBaseT Connection, Receiver Expands I/O, ISP Algorithm, Face Detection, 12x Optical Zoom, 255 Presets
Image Sensor: 1/2.8-inch -Type CMOS
Sensor Resolution: 8.29 Megapixel
Focus Control: AutofocusManual Focus
Shutter Type: Electronic Rolling Shutter
Minimum Illumination: 0.5 Lux at f/1.8 Aperture
Focal Length: 3.5 to 42mm
Max Optical Zoom: 12x
Max Digital Zoom: 15x
Field of View: 80 to 8°
Maximum Aperture: f/1.8 to 11
Video Output: via HDMI / USB3840 x 2160 at 30.00 fps2560 x 1440 at 30.00 fps
Internal Recording: No
Presets: 255
Pan/Tilt/Roll: Pan: 340 degrees (-170 to 170 degrees) at 35 degrees/s Tilt: 120 degrees (-30 to 90 degrees) at 0.1 to 30 degrees/s
Wireless: Wi-Fi
Video I/O: 1x RJ45 (HDBaseT) Output1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O: 1x 1/8-inch / 3.5 mm TRS Stereo Line Input
Built-In Microphone: No
Built-In Speaker: No
PoE Support: No
Power I/O: 1x DC Input1x Block 2-Pin Input
Power Consumption: 12 VDC
Hub I/O: 1x HDMI Input2x RJ451x USB-B Output1x 1/8-inch / 3.5 mm Input1x Phoenix 3-Pin Input1x Phoenix 3-Pin Output
Power Consumption: Device: 24 VDC at 2.7 A
Operating Conditions: 14 to 122 degreesF / -10 to 50 degreesC at 20 to 80% Humidity
Storage Conditions: 14 to 158 degreesF / -10 to 70 degreesC at 20 to 95% Humidity
Impact Resistance: No
Dimensions: 7.13 x 5.83 x 4.5-inch / 181.1 x 148.08 x 114.3 mm (Camera)7.69 x 5.31 x 1-inch / 195.33 x 134.87 x 25.4 mm (Hub)
Weight: 2.75 lb / 1.25 kg (Camera)0.98 lb / 0.44 kg (Hub)
