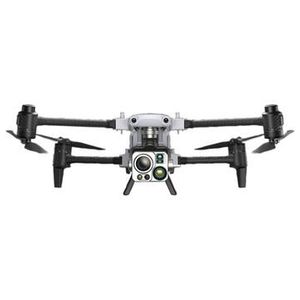

Autel Robotics Alpha Industrial Drone with 5-in-1

Features: Visual/Thermal Wide & Tele Imaging, Up to 1.25-Mile Laser Range-Finding, 720° Visual & Radar Obstacle Avoidance, Anti-Interference Technology, A-Mesh Networking of Multi-Drone Fleets, 4K Image & Video Capture, Dual-Antenna RTK Millimeter Precision, IP55-Rated Water & Dust Resistance, Up to 40 Minutes of Flight Time, Autel Smart Controller V3 Included

Maximum Horizontal Speed: 55.9 mph / 25 m/s

Maximum Ascent Speed: 33.6 mph / 15 m/s

Maximum Descent Speed: 6.2 mph / 10 km/h

Maximum Wind Resistance: 26.8 mph / 12 m/s

Maximum Take-Off Altitude: 2.8 Miles / 4500 m

Maximum Flight Time: 40 Minutes

Maximum Hover Time: 38 Minutes

Maximum Tilt Angle: 36 degrees

Hovering Accuracy: Vision PositioningVertical: ±0.3' / 0.1 m Horizontal: ±0.49' / 0.15 m RTKVertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m GNSSVertical: ±1.0' / 0.3 m Horizontal: ±1.0' / 0.3 m

Maximum Angular Velocity: 300 degrees/s (Pitch)120 degrees/s (Yaw)

Rotor Configuration: Quadcopter

Remote ID: No

Operating Conditions: -4 to 122 degreesF / -20 to 50 degreesC

Number of Cameras: 4 (Cannot Be Used Simultaneously)

Camera System: Wide1/2-inch -Type CMOS Sensor with 24mm-Equivalent - f/2.8 LensZoom1/1.8-inch -Type CMOS Sensor with 34.7 to 838mm-Equivalent - f/1.6 LensWide ThermalVanadium Oxide (VOX) Sensor with -4 to 1022 degreesF / -20 to 550 degreesC Measurement Range

Zoom: Zoom35x Optical / 560x DigitalWide Thermal3.5x DigitalThermal56x Digital

Minimum Focus Distance: Zoom32.8' / 10 mThermal114.8' / 35 mWide Thermal19.7' / 6 m

ISO Sensitivity Range: Wide100 to 3200Zoom100 to 25 - 600 (Extended: 100 to 160 - 000)

Night Vision: No

Shutter Speed: All Cameras1/2 to 1/8000 Second (Photo) 1/30 to 1/8000 Second (Video)

Maximum Video Resolution: WideUp to 4000 x 3000 at 25 fps ZoomUp to UHD 4K at 30 fps ThermalUp to 640 x 512 at 25 fps

Still Image Support: WideUp to 12 MP (JPEG) ZoomUp to 8 MP (JPEG) ThermalUp to .3 MP (JPEG)

Photo Modes: Single Shot

Media/Memory Card Slot: In GimbalmicroSD/microSDHC/microSDXC (UHS-I) [256 GB Maximum / Class 10/U3/V30 or Faster Recommended]

Internal Storage: In Remote/Transmitter128 GB

Number of Axes: Three: Pitch (Tilt) / Roll / Yaw (Pan)

Rotation Range: Controllable RangeYaw (Pan): 120° (-90 to 30°) Mechanical RangeYaw (Pan): 180° (-90 to 90°) Roll: 120° (-60 to 60°) Pitch (Tilt): 180° (-135 to 45°)

Follow Speed: Tilt: 100°/s

Stabilization Accuracy: ±0.005°

Sensing System: Omnidirectional with Radar Enhancement

Sensing System Capabilities: ForwardDetection Range: 0.7 to 101.7' / 0.2 to 31 mField of View: 90 degrees (Vertical) / 90 degrees (Horizontal)BackwardDetection Range: 0.7 to 85.3' / 0.2 to 26 mField of View: 90 degrees (Vertical) / 90 degrees (Horizontal)LateralDetection Range:

Laser Rangefinder: Yes: 1.2 Miles / 2 km

Control Method: Included Transmitter

Transmission System: Wi-Fi 5 (802.11ac)Frequencies: 2.4 GHz (2.400 to 2.4835) / 5.8 GHz (5.725 to 5.750)Power at 2.4G: 30 dBm (FCC/ISED) / 20 dBm (CE/SRRC/UKCA)Power at 5.8G: 30 dBm (FCC/ISED/SRRC) / 14 dBm (CE/UKCA)Bluetooth 5.0Frequencies: 2.4 GHz (2.400 to 2.4835)Powe

Maximum Operating Distance: 12.4 Miles / 20 km

Transmitter I/O: 1x HDMI (Video)1x USB-C (Data)1x USB-A (Data)

Clean Video Output: Not Specified by Manufacturer

Battery Type: Built-In Lithium-Ion Polymer (LiPo) (5800 mAh)

Operating Temperature: 32 to 113 degreesF / 0 to 45 degreesC

Mobile App Compatible: No

Built-In Display: 7.9-inch (2048 x 1536) Touchscreen LCD - 2000 nits/ cd/m2

Dimensions: 105.9 x 74.4 x 34.3-inch / 269 x 189 x 87 cm (Antennas Folded)105.9 x 118.9 x 34.3-inch / 269 x 302 x 87 cm (Antennas Unfolded)

Battery Chemistry: Lithium-Ion Polymer (LiPo)

Battery Capacity: 10 - 000 mAh / 237 Wh

Battery Configuration: 6 S / 23.7 V

Maximum Charging Power: 260 W

Storage Temperature: 14 to 86 degreesF / -10 to 30 degreesC

Charging Temperature: 50 to 113 degreesF / 10 to 45 degreesC

Weight: 2.2 lb / 988 g

Input Power: 100 to 240 VAC - 50 / 60 Hz at 4 A

Output Voltage: 26.4 V - 7 A

Power Rating: 185 W

GNSS Support: GPS - GLONASS - BeiDou - Galileo

Encryption: No

Diagonal Size: 2.7' / 814 mm

Overall Dimensions: 1.5 x 0.9 x 0.8' / 455.0 x 263.0 x 245.0 mm (Folded)4.0 x 3.2 x 0.9' / 1205.0 x 980.0 x 278.0 mm (Unfolded)

Weight: 13.98 lb / 6.34 kg (Takeoff)18.5 lb / 8.4 kg (with Maximum Payload)
