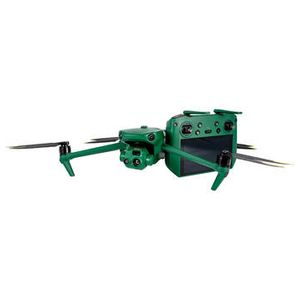

ANZU ROBOTICS Raptor T Enterprise Drone with Speak

With mission-specific accessories - the Raptor T Enterprise Drone with Speaker & RTK Bundle from ANZU ROBOTICS can be utilized in a wide range of professions and industries On its own - the Raptor drone offers high-end filmmaking capabilities with a dual-camera gimbal capable of recording 4K30 footage and a thermal lens that can be used for inspections and emergency rescue missions The included accessory bundle adds an RTK module - speaker - and battery charging hub The RTK module is great for surveying - farming - and construction - delivering centimeter-level precision mapping - while the speaker is ideal for crowd management or worker communication To protect this investment - you also get one year of Care protection that offers limited accidental damage coverage - priority support - and repair

Features: Secure US-Based Apps & Server Storage, Speaker, RTK & Charging Hub Included, Split Screen & Zoom on Remote, Mechanical Shutter to Reduce Blur, Advanced Obstacle Avoidance System, Up to 9-Mile Transmission Range, Up to 45 Minutes of Flight Time, Low Light Mode & 56k Hybrid Zoom, 20MP Wide, 12MP Tele & Thermal Lenses, 1 Year of Care Protection

Maximum Horizontal Speed: 47 mph / 75.6 km/h

Maximum Ascent Speed: 17.9 mph / 28.8 km/h

Maximum Descent Speed: 13.4 mph / 21.6 km/h

Maximum Wind Resistance: 26.8 mph / 43.1 km/h

Maximum Take-Off Altitude: 3.7 Miles / 6 km

Maximum Flight Time: 45 Minutes

Maximum Hover Time: 38 Minutes

Maximum Tilt Angle: 35 degrees

Hovering Accuracy: Vision PositioningVertical: ±0.3' / 0.1 m Horizontal: ±1.0' / 0.3 m RTKVertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m High-Precision Positioning SystemHorizontal: ±1.6' / 0.5 m GNSSVertical: ±1.6' / 0.5 m

Maximum Angular Velocity: 200 degrees/s

Rotor Configuration: Quadcopter

Propeller Size: 9.4x5.3-inch

Remote ID: Yes

Built-In Video Light: No

Aircraft I/O: 1x USB-C (Power)

Operating Conditions: 14 to 104 degreesF / -10 to 40 degreesC

Number of Cameras: 2

Camera System: ThermalVanadium Oxide (VOX) Sensor with -4 to 932 degreesF / -20 to 500 degreesC Measurement Range (61 degrees FoV)Wide48 MP - 1/2-inch -Type CMOS Sensor with 24mm-Equivalent - f/2.8 Lens (84° FoV)Telephoto12 MP - 1/2-inch -Type CMOS Sensor with

Zoom: Telephoto56x DigitalThermal28x Digital

Minimum Focus Distance: Wide3.3' / 1 mTelephoto9.8' / 3 mThermal16.4' / 5 m

ISO Sensitivity Range: Wide100 to 25 - 600Telephoto100 to 25 - 600

Shutter Speed: WideElectronic Shutter: 1/8000 to 8 Seconds (Photo/Video) Telephoto1/8000 to 8 Seconds (Photo/Video)

Maximum Video Resolution: WideUp to 4K at 30 fps / 1080p at 30 fps TelephotoUp to 4K at 30 fps / 1080p at 30 fps ThermalUp to 512p at 30 fps

Still Image Support: WideUp to 48 MP (DNG / JPEG) TelephotoUp to 12 MP (JPEG) ThermalUp to .3 MP (JPEG / RJPEG)

Photo Modes: Interval - Single Shot

Media/Memory Card Slot: In Aircraft BodymicroSD/microSDHC/microSDXCIn Remote/TransmittermicroSD/microSDHC/microSDXC

Internal Storage: In Remote/Transmitter64 GB

Number of Axes: 3: Pitch (Tilt) - Roll - Yaw (Pan)

Rotation Range: Controllable RangePitch (Tilt): 125° (-90 to 35°) Mechanical RangeYaw (Pan): 54° (-27 to 27°) Roll: 90° (-45 to 45°) Pitch (Tilt): 180° (-135 to 45°)

Follow Speed: Tilt: 100°/s

Stabilization Accuracy: ±0.007°

Sensing System: Omnidirectional with

Sensing System Capabilities: ForwardMeasurement Range: 1.6 to 65.6' / 0.5 to 20 mMax Speed: 49.2 ft/s / 15 m/sField of View: 90 degrees (Horizontal) / 103 degrees (Vertical)BackwardMeasurement Range: 1.6 to 52.5' / 0.5 to 16 mMax Speed: 39.4 ft/s / 12 m/sField of View: 90 degree

Control Method: Included Transmitter

Operating Frequency: 2.4 GHz (2.4 to 2.4835)5.8 GHz (5.725 to 5.850)

Maximum Operating Distance: 9.3 Miles / 15 km

Transmitter Power: 2.4 G: 33 dBm (FCC) - 20 dBm (CE - MIC - SRRC)5.8 G: 33 dBm (FCC) - 14 dBm (CE) - 30 dBm (SRRC)

Transmitter I/O: 1x Mini-HDMI Output (Video)1x USB-C Input (Power)

Clean Video Output: No

Battery Type: Built-In Lithium-Ion (5000 mAh)

Wi-Fi: Wi-Fi 6 (802.11ax) with MU-MIMO Support (2 x 2)

Bluetooth: 5.1

Mobile App Compatible: No

Built-In Display: 5.5-inch (1920 x 1080) Touchscreen LCD - 1000 nits/ cd/m2

Operating Temperature: 14 to 104 degreesF / -10 to 40 degreesC

Battery Chemistry: Lithium-Ion Polymer (LiPo)

Battery Capacity: 5000 mAh / 77 Wh

Battery Configuration: 4 S / 15.4 V

Maximum Charging Power: 17.6 V

Operating Temperature: 14 to 104 degreesF / -10 to 40 degreesC

Storage Temperature: >3 Months: -22 to 77 degreesF / -30 to 25 degreesC

Charging Temperature: 41 to 104 degreesF / 5 to 40 degreesC

Weight: 0.7 lb / 335.5 g

Input Power: 100 to 240 VAC - 50 / 60 Hz at 2.5 A

Power Rating: 100 W

GNSS Support: GPS - GLONASS - BeiDou - Galileo

Diagonal Size: 15-inch / 380.1 mm

Overall Dimensions: 8.7 x 3.8 x 3.6-inch / 221.0 x 96.3 x 90.3 mm (Folded)13.7 x 11.1 x 4.2-inch / 347.5 x 283.0 x 107.7 mm (Unfolded)

Weight: 2.31 lb / 1.05 kg (Maximum for Takeoff)2.03 lb / 0.92 kg (With Propellers)
