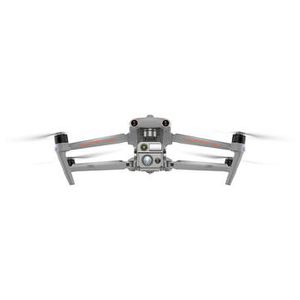

Autel Robotics EVO Max 4N Industrial Drone

Features: Starlight Camera for Nighttime Flight, 85° FOV 4K/30 Wide-Angle Camera, -4 to 1022°F Thermal Camera, Auto Tracking of Different Target Types, Skylink 3.0 & Smart Controller V3, Up to 0.75 Mile Laser Rangefinder, Quad Camera with Thermal & Range Finding, 8-Camera 720° Obstacle Avoidance, Anti-Jamming & Anti-Interference, Drone-to-Drone Autonomous Communication

Maximum Horizontal Speed: 51.4 mph / 82.7 km/h

Maximum Ascent Speed: 17.9 mph / 28.8 km/h

Maximum Descent Speed: 13.4 mph / 21.6 km/h

Maximum Wind Resistance: 27 mph / 43.5 km/h

Maximum Take-Off Altitude: 4.3 Miles / 7000 m

Maximum Flight Time: 42 Minutes

Maximum Hover Time: 38 Minutes

Maximum Tilt Angle: 36 degrees

Hovering Accuracy: Vision PositioningVertical: ±0.3' / 0.1 m Horizontal: ±0.49' / 0.15 m RTKVertical: ±0.49' / 0.15 m Horizontal: ±0.3' / 0.1 m GNSSVertical: ±1.0' / 0.3 m Horizontal: ±1.0' / 0.3 m

Maximum Angular Velocity: 300 degrees/s (Pitch)120 degrees/s (Yaw)

Rotor Configuration: Quadcopter

Propeller Size: 11-inch

Remote ID: Yes

Aircraft I/O: 1x USB-C (Service)

Operating Conditions: -4 to 122 degreesF / -20 to 50 degreesC

Number of Cameras: 3 (Cannot Be Used Simultaneously)

Camera System: Wide50 MP - 1/1.28-inch -Type CMOS Sensor with 23mm-Equivalent - f/1.9 Lens (85 degrees FoV)Standard2.3 MP - Size-Unspecified CMOS Sensor with 41.4mm-Equivalent Lens (52 degrees FoV)

Zoom: Standard8x DigitalThermal8x Digital

Minimum Focus Distance: Wide3.3' / 1 mThermal7.2' / 2.2 m

ISO Sensitivity Range: StandardPhoto/Video: 100 to 450 - 000 in Manual - Auto ModeWidePhoto: 100 to 6400 in Auto ModeVideo: 100 to 64 - 000 in Auto ModePhoto: 100 to 12 - 800 in Manual ModeVideo: 100 to 6400 in Manual Mode

Night Vision: Black-and-White Only

Shutter Speed: Wide1/2 to 1/8000 Seconds (Photo) 1/30 to 1/8000 Seconds (Video)

Maximum Video Resolution: StandardUp to 4000 x 3000 at 30 fps WideUp to 4000 x 3000 at 30 fps ThermalUp to 640 x 512 at 25 fps

Still Image Support: StandardUp to 2.3 MP (JPEG) WideUp to 12 MP (JPEG) ThermalUp to 3 MP (JPEG)

Photo Modes: Burst Shooting - Single Shot

Media/Memory Card Slot: In Aircraft BodymicroSD/microSDHC/microSDXC (UHS-III) [Class 10/U1/V10 or Faster Recommended]

Internal Storage: In Aircraft Body128 GBIn Remote/Transmitter128 GB

Number of Axes: Three: Pitch (Tilt) / Roll / Yaw (Pan)

Rotation Range: Controllable RangePitch (Tilt): 120° (-90 to 30°) Mechanical RangeYaw (Pan): 180° (-135 to 45°) Roll: 90° (-45 to 45°) Pitch (Tilt): 90° (-45 to 45°)

Follow Speed: Tilt: 100°/s

Stabilization Accuracy: ±0.005°

Sensing System: Omnidirectional with Radar Enhancement

Sensing System Capabilities: ForwardDetection Range: 1.0 to 164.0' / 0.3 to 50 mField of View: 120 degrees (Horizontal) / 80 degrees (Vertical)BackwardDetection Range: 1.0 to 164.0' / 0.3 to 50 mField of View: 120 degrees (Horizontal) / 80 degrees (Vertical)LateralDetection Rang

Laser Rangefinder: Yes: 0.7 Miles / 1200 m

Control Method: Included Transmitter

Transmission System: ProprietaryFrequencies: 900 MHz (902.000 to 928.000) / 2.4 GHz (2.4 to 2.476) / 5.8 GHzPower at 0.9G: 30 dBm (FCC)Power at 2.4G: 12.14 dBm (MIC) / 30 dBm (FCC) / 20 dBm (CE/SRRC)Power at 5.8G: 30 dBm (FCC/SRRC) / 14 dBm (CE)

Maximum Operating Distance: 12.4 Miles / 20.0 km

Transmitter I/O: 1x HDMI (Video)1x USB-C (Data - Power)1x USB-A (Data - Power)

Clean Video Output: Not Specified by Manufacturer

Battery Type: Built-In Lithium-Ion (5800 mAh)

Operating Temperature: -4 to 104 degreesF / -20 to 40 degreesC

Mobile App Compatible: No

Built-In Display: 7.9-inch (2048 x 1536) Touchscreen LCD - 2000 nits/ cd/m2

Dimensions: 10.6 x 7.4 x 3.4-inch / 269 x 189 x 87 mm (Antennas Folded)10.6 x 11.9 x 3.4-inch / 269 x 302 x 87 mm (Antennas Unfolded)

Battery Chemistry: Lithium-Ion Polymer (LiPo)

Battery Capacity: 8070 mAh / 120 Wh

Battery Configuration: 4 S / 14.88 V

Maximum Charging Power: 247 W / 17 V

Charging Temperature: 41 to 113 degreesF / 5 to 45 degreesC

Weight: 1.1 lb / 520 g

Input Power: 0 to 240 VAC - 50 / 60 Hz at 3 A

Output Voltage: 17 V - 7.06 A5 V - 3 A9 V - 3 A12 V - 2.5 A

Power Rating: 120 W

GNSS Support: GPS - GLONASS - BeiDou - Galileo

Encryption: 128-Bit AES

Diagonal Size: 1.5' / 464 mm

Overall Dimensions: 22.7 x 5.9 x 26.0-inch / 576.0 x 149.0 x 660.0 mm (Folded)10.1 x 5.2 x 5.4-inch / 257.0 x 133.0 x 136.0 mm (Unfolded)

Weight: 3.5 lb / 1600 g (With Battery - Gimbal)
