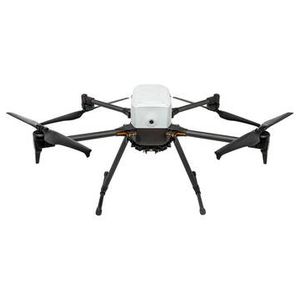

Inspired Flight IF800 Tomcat Commercial Drone with
Product Description
American-made and NDAA-reliable - the IF800 Tomcat Commercial Drone with Blue Herelink Remote & Gremsy VIO F1 Payload from Inspired Flight is a medium-lift autonomous UAS that's ready to take on a host of industrial and professional applications This configuration of the IF800 is paired with the Gremsy VIO F1 EO/IR payload - which features an RGB camera - thermal camera - and laser rangefinder It's ideal for search and rescue - inspections - and more Unfold the Tomcat and take to the sky whenever the need arises - as the robust construction of the IF800 Tomcat lets it withstand harsh conditions while achieving impressive results It can accommodate up to a 66 lb payload and withstand winds up to 23 knots - all while flying at up to 49 mph for up to 54 minutes
Features: Medium-Lift Autonomous UAS Drone, Gremsy VIO F1 RGB/Thermal Payload, Up to 54 Minutes of Flight Time, Fly up to 49 mph, Blue Herelink Ground Control System, Withstands Winds up to 23 Knots, -4 to 113°F Operating Temperature, Flight Stack with Controller & GNSS, Folding Design with Transport Case, Can Accommodate Payloads up to 6.6 lb
Maximum Horizontal Speed: 49 mph / 21.9 m/s
Maximum Ascent Speed: 16 ft/s / 4.9 m/s
Maximum Descent Speed: 10 ft/s / 3.0 m/s
Maximum Wind Resistance: 26.8 mph / 12 m/s
Maximum Flight Time: 54 Minutes
Maximum Tilt Angle: 30 degrees
Hovering Accuracy: Not Specified by Manufacturer
Maximum Angular Velocity: 300 degrees/s (Pitch)120 degrees/s (Yaw)
Rotor Configuration: Quadcopter
Remote ID: No
Operating Conditions: -4 to 113 degreesF / -20 to 45 degreesC
Number of Cameras: 1
Camera System: ThermalVanadium Oxide (VOX) Sensor with 284 to 932 degreesF / 140 to 500 degreesC Measurement Range with 14mm-Equivalent Lens (32 degrees FoV)RGB8.51 MP - 1/2.5-inch -Type CMOS Sensor with 4.4 to 88.4mm-Equivalent Lens
Zoom: Thermal8x DigitalRGB Camera20x Optical / 12x Digital / 240x Hybrid
Night Vision: No
Shutter Speed: RGB1/2000 to 1/30 Seconds
Maximum Video Resolution: RGBUp to UHD 4K at 30 fps
Still Image Support: RGBUp to 8.51 MP (JPEG)
Media/Memory Card Slot: No
Internal Storage: No
Number of Axes: Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range: Controllable RangeYaw (Pan): 310° Roll: 40° Pitch (Tilt): 120° Mechanical RangeYaw (Pan): 320° Roll: 340° (-260 to 80°) Pitch (Tilt): 143°
Follow Speed: Pan/Tilt/Roll: 100°/s
Stabilization Accuracy: ±0.01°
Control Method: Included Transmitter
Transmission System: Proprietary2.4 GHz
Mobile App Compatible: Yes: Android & iOS
GNSS Support: Not Specified by Manufacturer
Diagonal Size: 35.6-inch / 905 mm (Including Propellers)
Overall Dimensions: 14.2 x 7.9 x 17.3-inch / 36.0 x 20.0 x 44.0 cm (Folded)52.0 x 20.5 x 44.9-inch / 132.0 x 52.0 x 114.0 cm (Unfolded)
Weight: 25.4 lb / 11.5 kg (Takeoff)18.7 lb / 8.5 kg (With Battery)9.3 lb / 4.2 kg (Without Battery)
