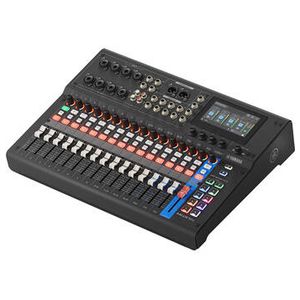

Yamaha MGX16V 22-Channel Digital Mixing Console wi
Product Description
Delivering a perfect blend of flexibility - performance - and premium sound quality - the Yamaha MGX16V is a 22-channel digital mixing console that builds upon the success of the analog MG-Series analog mixers and creates the next evolution of hands-on digital mixing environments well suited for a versatile range of live and installed sound - podcast/live streaming - music production - and recording applicationsThe MGX16V integrates a USB-HDMI audio/video interface with capture and pass-through functionality - enabling users not only to mix and output audio in a variety of ways - but also to simultaneously capture video to a PC and record or stream it together with the audio With the ability to seamlessly integrate high-definition video into your workflow - the MGX16V opens up new creative possibilities in a wider range of environments In any application that involves content with both audio and video - the MGX16V will elevate your production quality and captivate your audience
Features: For Live Sound, Podcasts, and Streaming, 8 Combo XLR-1/4-inch Mic/Line Inputs, 4 1/4-inch & RCA Inputs + XLR & 1/4-inch Outputs, Dual USB: 18x18 Rec/Play + 2x2 Rec/Play, Bluetooth Audio Input, MicroSD Recording, Customizable Sound Pads, Smart Gain + Studio Quality FX, Built-In Compression and EQ per Channel, Four Headphone Outputs + HDMI In/Thru, Includes Expansive Software Library
Max I/O Capacity: 16x Input / 14x Output
Number of Analog Input Channels: 16 (8 Mono / 4 Stereo)
Number of Mic Preamps: 16
Number of Analog Output Channels: 14
Mix Routing: 1x Stereo Main LRC8x Bus2x Mono Matrix1x Stereo FX Return
Groups: No
Display: Main Display:4.3-inch LCD Touchscreen
Faders & Level Adjustment: 16x 2.4-inch / 60 mm Motorized Channel Fader16 FX Knob5 Knob1 Knob(Touch Sensitive)
Gain/Trim Range: 0 dB to +86 dB
Dynamic Processing: Compressor - Multi-Band Compressor - Gate
Built-In Effects: 11x Effect (Type Unspecified)
Sample Rates: 44.1 kHz96 kHz
Frequency Response: 20 Hz to 20 kHz +1/-2 dB
Analog Dynamic Range: Output:125 dB Input to Output:115 dB
Headphone Output Power: 100 mW per Channel into 40 Ohms (Max)
Noise Floor: -108 dBu
THD: < 0.002% at Min Gain (+4 dBu)
Analog Inputs: 8x Combo XLR-1/4-inch TRS Balanced Mic/Line Input4x 1/4-inch TRS Balanced/Unbalanced Line Input2x Stereo RCA Coaxial Unbalanced Stereo Line Input
Analog Outputs: 2x XLR 3-Pin Balanced Output8x 1/4-inch TRS Balanced/Unbalanced Bus Output4x 1/4-inch TRS Unbalanced Stereo Headphone Output
Digital I/O: No
MIDI I/O: No
USB I/O: 1x USB-C (Host Connection - Multitrack Record)1x USB-C (2-Track Record - Audio Playback - Control - External Memory)
USB I/O Capacity: 18x Input / 18x Output
Expansion Ports: No
Wireless: Bluetooth 5.0*Built-In
External Display I/O: 2 x HDMI
Max Multitrack Recording: 18 Tracks
Media Support: SDHC
File Format Support: Playback: MP3 - WAVRecord: MP3 - WAV
Input Power: 16 VDC at 2.4 A100 to 240 VAC - 50 / 60 Hz
Rack Mountable: Yes
Operating Conditions: 32 to 104 degreesF / 0 to 40 degreesC
Dimensions: 16.5 x 3.8 x 12.5-inch / 419.1 x 96.5 x 317.5 mm
Weight: 10.8 lb / 4.9 kg
