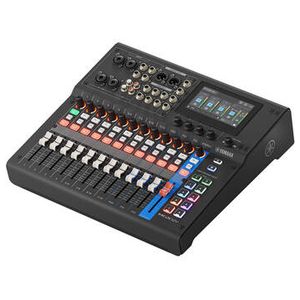

Yamaha MGX12V B 18-Channel Digital Mixing Console
Product Description
Yamaha MGX12V B 18-Channel Digital Mixing Console with Dual USB-C Audio/Video Interface (Black)
Features: 4.3-inch Touchscreen with 5 Control Knobs, Tactile Faders, Versatile Input and Output Options, MGX Preamps with 86 dB Gain Range, USB-HDMI Interface with 4K Video Capture, Bluetooth Audio Input, MicroSD Card Slot, Automatic Mixing Features, Includes DAW Bundle with Cubase, Wavelab, Basic Effects Suite and Steinberg Plus
Max I/O Capacity: 16x Input / 8x Output
Number of Analog Input Channels: 16
Number of Mic Preamps: 4
Number of Analog Output Channels: 8
Mix Routing: 1x Matrix2x Bus1x FX Return
Presets: Yes
Display: Main Display:4.3-inch Touchscreen
Faders & Level Adjustment: 12 Fader
Meters: 12x LED
Gain/Trim Range: Up to +86 dB
EQ: No
Graphic EQ: Yes
Solo/Mute: Solo - Solo-in-Place/AFL - Mute - PFL per Input Channel
Built-In Effects: 13x Stereo Effect (Type Unspecified)
Audio Delay: Yes
Automatic Mic Mixing: Yes
Sample Rates: Up to 96 kHz
Frequency Response: 20 Hz to 20 kHz (at 1 kHz)
Analog Dynamic Range: 125 dB at Min Gain 115 dB at Min Gain
THD: Mic Input:< 0.002% at Min Gain (+4 dBu)
Signal Generator: Yes
Analog Inputs: 8x Combo XLR-1/4-inch TRS Stereo Input4x 1/4-inch TRS Stereo Input4x RCA Stereo Input
Analog Outputs: 2x XLR 3-Pin Stereo Output8x 1/4-inch TRS Stereo Output
Phantom Power: +48 V
Digital I/O: No
MIDI I/O: No
USB I/O: 2x USB-C
Other I/O: 1x HDMI Breakout Cable Input1x HDMI Breakout Cable Thru
Wireless: No
External Display I/O: No
Max Multitrack Recording: 22 Tracks
Media Support: SD - USB Drive
Max Media Storage Capacity: 1 GB
OS Compatibility: macOS 15 or Later / Windows 11 or Later
RAM Requirements: 4 GB
Input Power: 100 to 240 VDC
Rack Mountable: Yes
Operating Conditions: 32 to 104 degreesF / 0 to 40 degreesC
Dimensions: 13.2 x 12.5 x 3.8-inch / 33.5 x 31.8 x 9.7 cm
Weight: 9 lb / 4.1 kg
