Yamaha MGX12 18-Channel Digital Mixing Console wit
Product Description

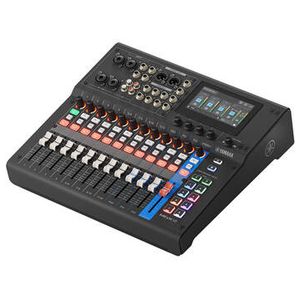

Yamaha MGX12 18-Channel Digital Mixing Console with Audio Interface (Black)
Features: For Live Sound, Podcasts, and Streaming, 4 Combo XLR-1/4-inch Mic/Line Inputs, 4 1/4-inch & RCA Inputs + XLR & 1/4-inch Outputs, Dual USB: 18x18 Rec/Play + 2x2 Rec/Play, Bluetooth Audio Input, MicroSD Recording, Customizable Sound Pads, Smart Gain + Studio Quality FX, Built-In Compression and EQ per Channel, Four Headphone Outputs, Includes Expansive Software Library
Max I/O Capacity: 16x Input / 8x Output
Number of Analog Input Channels: 16
Number of Mic Preamps: 4
Number of Analog Output Channels: 8
Mix Routing: 1x Main LRC2x Bus1x FX Return
Presets: Yes
Display: Main Display:4.3-inch Touchscreen
Faders & Level Adjustment: 12 Fader
Meters: 12x LED
Gain/Trim Range: Up to +86 dB
EQ: No
Graphic EQ: Yes
Solo/Mute: Solo - Solo-in-Place/AFL - Mute - PFL per Input Channel
Built-In Effects: 13x Stereo Effect (Type Unspecified)
Audio Delay: Yes
Automatic Mic Mixing: Yes
Sample Rates: Up to 96 kHz
Frequency Response: 20 Hz to 20 kHz (at 1 kHz)
Analog Dynamic Range: 125 dB at Min Gain 115 dB at Min Gain
THD: Mic Input:< 0.002% at Min Gain (+4 dBu)
Signal Generator: Yes
Analog Inputs: 4x Combo XLR-1/4-inch TRS Balanced/Unbalanced Mic/Line Input4x 1/4-inch TRS Balanced/Unbalanced Stereo Line Input4x RCA Coaxial Stereo Line Input
Analog Outputs: 2x XLR 3-Pin Balanced Stereo Main Output8x 1/4-inch TRS Balanced/Unbalanced Stereo Output
Phantom Power: +48 V
Digital I/O: No
MIDI I/O: No
USB I/O: 2x USB-C
Wireless: No
External Display I/O: No
Max Multitrack Recording: 18 Tracks
Media Support: SD - USB Drive
Max Media Storage Capacity: 1 GB
OS Compatibility: macOS 15 or Later / Windows 11 or Later
RAM Requirements: 4 GB
Input Power: 100 to 240 VDC
Rack Mountable: Yes
Operating Conditions: 32 to 104 degreesF / 0 to 40 degreesC
Dimensions: 13.2 x 12.5 x 3.8-inch / 33.5 x 31.8 x 9.7 cm
Weight: 8.6 lb / 3.9 kg
