Axis Communications A8207-VE MkII Network Video Do
Product Description

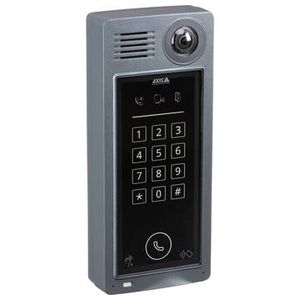

The A8207-VE MkII Network Video Door Station from Axis Communications combines video intercom and access control functionality in one unit It features two-way audio with noise reduction and echo cancellation - an RFID reader - a wide-angle camera that captures 6MP video from a 180 degrees horizontal field of view - a keypad for dialing and PIN verification - a PIR motion sensor - and a built-in memory card slot that accepts microSD/SDHC/SDXC cards (available separately) This door station complies with ONVIF profiles S & G for interoperability with a wide range of devices It is housed in an IP66- and NEMA 4X-rated enclosure to protect it from the elements Additionally - the front glass is rated IK08 for protection from impact and scratches
Features: Video Door Station with 6MP Camera, Two-Way Audio, Noise Reduction and Echo Cancellation, RFID Reader for Access Control, IK08-Rated Glass, PIR Motion Sensor, Card Slot Supports microSD/SDHC/SDXC, Complies with ONVIF Profiles S & G, IP66 & NEMA 4X Rated for Outdoor Use, Numeric Keypad
Image Sensor: 1/2.9-inch Progressive Scan RGB CMOS
Lens: 1.56mm - f/2.8 Fixed Focus - IR Corrected - Fixed Iris
Field of View: Horizontal: 180 degrees Vertical: 120 degrees
Minimum Illumination: LED Lit: 0 Lux LED Unlit with WDR: 0.7 Lux LED Unlit without WDR: 0.55 Lux
Shutter Time: 1/143 - 000 to 2 Seconds (50/60 Hz)
Video Compression: H.264 (MPEG-4 Part 10/AVC) Main and High Profiles - MJPEG
Resolution: 3072 x 2048 to 160 x 90
Frame Rate: Up to 30/25 fps (60/50 Hz) in all Resolutions
Video Streaming: Multiple - Individually Configurable Streams in H.264 and MJPEG Axis Zipstream Technology in H.264 Controllable Frame Rate and Bandwidth VBR/MBR H.264
Image Settings: Saturation - Contrast - Brightness - Sharpness - Forensic WDR up to 120 dB - White Balance - Exposure Mode - Exposure Zones - Compression - Text and Image Overlay - and Privacy Masks
PTZ: Digital PTZ
Audio Streaming: Two-Way - Full Duplex Echo Cancellation and Noise Reduction
Audio Compression: 384-Bit LPCM - AAC-LC 8/16 kHz - G.711 PCM 8 kHz - G.726 ADPCM 8 kHz - Opus 8/16 kHz Configurable Bit Rate
Audio Inputs/Outputs: Line Input - Line Output - Dual Built-In Microphone (Can Be Disabled) - T-Coil - Built-In Speaker (73 dB at 19.7-inch / 50 cm)
Amplifier: Built-In 2 W Class D Amplifier
Card Reader: RFID
Entry Authentication: Card - Tag - PIN - Door Code
Alarm Status Indication: User Feedback for Access Granted - Access Denied - Keypad - Armed - Disarmed
Supported Protocols: RS-485 (OSDP) - Wiegand - Vapix Reader Interface
Reader Technology: Generic 13.56 MHz (MIFARE Classic - MIFARE Plus (Level 1) - MIFARE DESFire EV1 and EV2 - HID iCLASS - HID iCLASS Elite) Proximity 125 kHz (HID Proximity Cards - EM-42xx - ISOProx II)
Hearing Loop: T-Coil 4 W Class D Amplifier
Feedback: User Feedback: Illuminated Symbols - Indicator Stripe - Illuminated Buttons - Audible Feedback
Detection: Tamper Switch - Accelerometer (Shock Detection) - Video Tampering
Security: Password Protection - IP Address Filtering - Signed Firmware - HTTPS Encryption - IEEE 802.1X Network Access Control - Digest Authentication - User Access Log - Centralized Certificate Management - Secure Boot
Supported Protocols: IPv4/v6 - HTTP - HTTPS - SSL/TLSa - QoS Layer 3 DiffServ - FTP - SFTP - CIFS/SMB - SMTP - Bonjour - UPnP - SNMP v1/v2c/v3 (MIB-II) - DNS - DynDNS - NTP - RTSP - RTP - SRTP - TCP - UDP - IGMP - RTCP - ICMP - DHCP - ARP - SOCKS
Application Programming Interface: Open API for Software Integration - Including VAPIX and AXIS Camera Application Platform AXIS Guardian with One-Click Connection ONVIF Profiles S and G
VoIP: Support for Session Initiation Protocol (SIP) for Integration with VoIP Systems - P2P - or Integrated with SIP/PBX Tested with Various SIP Software such as Cisco - Bria - and Grandstream Tested with Various PBX Software such as Cisco - Avaya -
Analytics: Included AXIS Video Motion Detection - Active Tampering Alarm - Audio Detection Supported AXIS Guard Suite Including AXIS Motion Guard - AXIS Fence Guard - and AXIS Loitering Guard Support for AXIS Camera Application Platform Enabling Installatio
Event Triggers: Analytics - External Input - Edge Storage Events - Virtual Inputs Through API Call: DTMF - State - State Changes Detectors: Audio Detection - Live Stream Accessed - Shock Detection - Tampering - PIR - Motion Alarm Hardware: Casing Open - T
Event Actions: Axis Door Control HDMI Make Call: SIP - API Terminate Call: SIP - API Record Video and Audio: SD Card and Network Share Upload of Images or Video Clips: FTP - SFTP - HTTP - HTTPS - Network Share - and Email Pre- and Post-Alarm Video or Image B
Data Streaming: Event Data
Casing: IP66 and NEMA 4X Rated - IK08 Impact- and Scratch-Resistant Glass Aluminum Casing - Polycarbonate Hard-Coated Dome Color: Metallic Dark Gray
Sustainability: PVC Free
PIR Sensor: PIR Motion Sensor
Memory: 2048 MB RAM - 512 MB Flash
Power: Power In: PoE 802.3af/at Type 1 Class 3 - or PoE+ 802.3at Type 2 Class 4 - or 8-28 VDC - Minimum 25 W Power Consumption: Typical 8 W - Maximum 22 W Power Out: PoE 802.3af/at Type 1 Class 3: 24 V / 0.05 A or 12 V / 0.1 A PoE+ 802.3at Type 2 Class
Connectors: 100M RJ45 - PoE I/O: 6-Pin Terminal Block for 4 Alarm Inputs/Outputs DC Input - 2 Relays - Line Out - Line In - Micro-HDMI - RS-485/Wiegand
Storage: Support for microSD/SDHC/SDXC Cards Support for Recording to NAS
Operating Conditions: -40 to 131 degreesF / -40 to 55 degreesC Humidity: 10-100% RH (Condensing)
Storage Conditions: -40 to 149 degreesF / -40 to 65 degreesC
Approvals: EMC EN 55032 Class A - EN 55024 - EN 61000-6-2 - FCC Part 15 Subpart B Class A and Subpart C and Subpart E Safety IEC/EN/UL 62368-1 - IEC/EN/UL 60950-22 - UL 293 - UL 294 Environment IEC 60068-2-1 - IEC 60068-2-2 - IEC 60068-2-14 - IEC 60068
Dimensions: 9.8 x 4.2 x 2-inch / 248 x 106 x 51 mm
Weight: 2.9 lb / 1.3 kg
