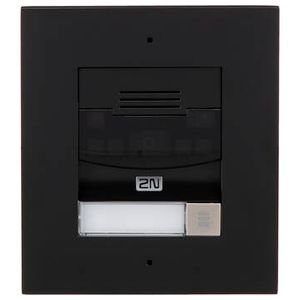

2N IP Solo Intercom System with Camera (Flush Moun
Product Description
The black 2N IP Solo Intercom System provides a combination of video calls and door control to your smart home The system can integrate into an existing home automated system via open API It has a built-in microphone and a 2W speaker A hidden camera can capture 1280 x 960 JPEG resolution photos during the day or at night and features a 145 degrees diagonal field of view The IP Solo comes with a flush-mounting frame and is IP54 and IK08 rated for outdoor installation
Features: Flush-Mounting Frame Included, IK08-Rated Impact Protection, IP54-Rated Dust & Water Resistance, Built-In Speaker and Microphone, Wide-Angle HD Camera with Night Vision, 1280 x 960 JPEG Resolution, Integrates with Home Automation Systems
Signaling Protocols: SIP 2.0 (RFC - 3261)
Button: 1 x Transparent Button with White Backlight and Removable Label
Microphone: 1 x Built-In Microphone
Speaker: 2 W
Sound Pressure: 78 dB (1 kHz at 1 m)
Audio Codecs: G.711 - G.729 - G.722 - L16 / 16 kHz
Camera Resolution: JPEG: 1280 x 960 Video: 640 x 480
Viewing Angle: Horizontal: 120 degrees Vertical: 90 degrees Diagonal: 145 degrees
Night Vision: Yes
Video Codecs: H.263+ - H.263 - H.264 - MJPEG - MPEG-4
Power Supply: 12 VDC ±15% - 2A PoE
PoE: PoE 802.3af (Class 0 - 12.95 W)
LAN: 10/100Base-TX with Auto-MDIX - RJ45
Output: Switch Output: NC/NO Contacts - Max 30 VAC/VDC - 1 A Active Switch Output: 8 to 12 VDC - 400 mA Maximum
Supported Protocols: SIP2.0 - DHCP opt. 66 - ONVIF - SMTP - 802.1x - RTSP - RTP - TFTP - HTTP - HTTPS - Syslog
Operating Temperature: -40 to 140 degreesF / -40 to 60 degreesC
Storage Temperature: -40 to 158 degrees / -40 to 70 degreesC
Operating Humidity: 10 to 95%
Rating: IP54 and IK08
Dimensions: 5.1 x 6.0 x 0.2-inch / 130 x 153 x 5 mm
Weight: Not Specified by Manufacturer
