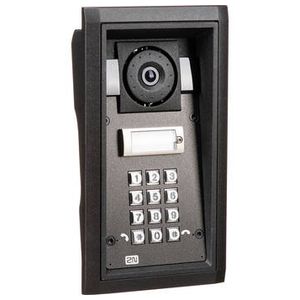

2N IP Force 1-Button Intercom System with Camera a
Product Description
The durable 2N IP Force 1-Button Intercom System provides a combination of video calls and door control to your smart home The system features a built-in 1280 x 960 resolution camera with a 135 degrees wide viewing angle It also has two built-in microphones and a 10W speaker for two-way communication - as well as a backlit call button and a numeric keypad for unlocking the door or dialing a number The IP Force Intercom can be integrated into an existing CCTV or surveillance system to increase site security It can also be fitted with an optional tamper switch that detects unauthorized opening of the device itself The housing is IP69K and IK10 rated for outdoor use in areas at risk of vandalism
Features: IK10 Impact Resistance, For Visitor Communication Monitoring, 1280 x 960 Resolution Video, Two Built-In Microphones, 10W Speaker, Clear Sound in Noisy Environments, One Backlit Button and Numeric Keypad, IP69K Weatherproof, Durable Access Control Solution
Signaling Protocols: SIP 2.0 (RFC - 3261)
Microphone: 2 x Built-In Microphones
Speaker: 10 W
Sound Pressure: 94 dB (1 kHz at 1 m)
Audio Codecs: G.711 - G.729 - G.722 - L16 / 16 kHz
Camera Resolution: 1280 x 960
Viewing Angle: Horizontal: 135 degrees Vertical: 109 degrees
Night Vision: Yes
Video Codecs: H.263+ - H.263 - H.264 - MJPEG
Power Supply: 12 VDC ±15% - 2 A PoE
PoE: PoE 802.3af (Class 0 - 12.95 W)
LAN: 10/100Base-TX with Auto-MDIX
Switch: Passive Switch: NC/NO Contacts - Max 30 VAC/VDC - 1 A Less than Source
Output: Active Switch: 9 to 13 VDC - 700 mA Maximum PoE: 9 V Adapter: 1 V
Supported Protocols: SIP2.0 - DHCP opt. 66 - SMTP - 802.1x - RTSP - RTP - TFTP - HTTP - HTTPS - Syslog - ONVIF
Operating Temperature: -40 to 131 degreesF / -40 to 55 degreesC
Storage Temperature: -40 to 158 degreesF / -40 to 70 degreesC
Operating Humidity: 10 to 95%
IP Rating: IP69K
IK Rating: IK10
Dimensions: 8.5 x 4.3 x 3.3-inch / 21.7 x 10.9 x 8.3 cm
Weight: 4.4 lb / 2 kg
