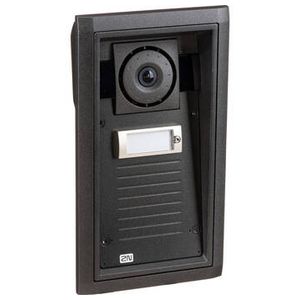

2N IP Force 1-Button Intercom System with Camera
Product Description
The durable 2N IP Force 1-Button Intercom System provides a combination of video calls and door control to your smart home The system features a built-in 1280 x 960 resolution camera with a 135 degrees wide viewing angle It also has two built-in microphones and a 10W speaker for two-way communication - as well as one backlit button The IP Force Intercom can be integrated into an existing CCTV or surveillance system to increase site security It can also be fitted with an optional tamper switch that detects unauthorized opening of the device itself The housing is IP69K and IK10 rated for outdoor use in areas at risk of vandalism
Features: Two Built-In Microphones, 1280 x 960 Resolution Video, For Visitor Communication Monitoring, IP69K Weatherproof, Durable Access Control Solution, One Backlit Button, Clear Sound in Noisy Environments, 10W Speaker, IK10 Impact Resistance
Signaling Protocols: SIP 2.0 (RFC - 3261)
Microphone: 2 x Built-In Microphones
Speaker: 10 W
Sound Pressure: 94 dB (1 kHz at 1 m)
Audio Codecs: G.711 - G.729 - G.722 - L16 / 16 kHz
Camera Resolution: 1280 x 960
Viewing Angle: Horizontal: 135 degrees Vertical: 109 degrees
Night Vision: Yes
Video Codecs: H.263+ - H.263 - H.264 - MJPEG
Power Supply: 12 VDC ±15% - 2 A PoE
PoE: PoE 802.3af (Class 0 - 12.95 W)
LAN: 10/100Base-TX with Auto-MDIX
Switch: Passive Switch: NC/NO Contacts - Max 30 VAC/VDC - 1 A
Output: Active Switch: 9 to 13 VDC - 700 mA Maximum PoE: 9 V Adapter: 1 V Less than Source
Supported Protocols: SIP2.0 - DHCP opt. 66 - SMTP - 802.1x - RTSP - RTP - TFTP - HTTP - HTTPS - Syslog - ONVIF
Operating Temperature: -40 to 131 degreesF / -40 to 55 degreesC
Storage Temperature: -40 to 158 degreesF / -40 to 70 degreesC
Operating Humidity: 10 to 95%
IP Rating: IP69K
IK Rating: IK10
Dimensions: 8.5 x 4.3 x 3.3-inch / 21.7 x 10.9 x 8.3 cm
Weight: 4.4 lb / 2 kg
