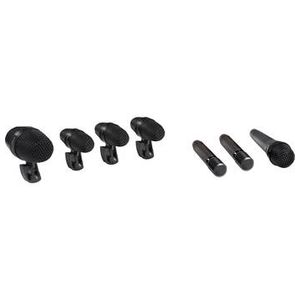

Shure PGADRUMKIT7 7-Piece Drum Microphone Kit
Product Description
The PGADRUMKIT7 from Shure is a 7-piece professional-quality drum microphone kit designed to capture sound for close-mic kick drum - snare - and tom performance sets It can be used in audio applications for live stage - theater - houses of worship - and more Included in the PGADRUMKIT7 are one PGA52 kick drum microphone - three PGA56 drum microphones for toms and snare - one PGA57 instrument microphone - and two PGA81 condenser microphones In addition - three drum mounts - three microphone clips - seven XLR-XLR cables - and a carrying case are also included
Features: 3x AP56DM Drum Rim Mounts, 3x A25D Break-Resistant Microphone Clip, 7x 15' XLR Cables, Zippered Carrying Case, 2x PGA81 Condenser Microphones, 3x PGA56 Cardioid Dynamic Snare/Tom Mic, PGA57 Cardioid Dynamic Instrument Mic, 7x Drum Performance and Recording Mics, PGA52 Cardioid Dynamic Kick Drum Mic
Type: Dynamic (moving coil)
Frequency Response: PGA52: 50 Hz to 15 kHz PGA56: 50 Hz to 15 kHz PGA57: 70 Hz to 15 kHz PGA81: 40 Hz to 18 kHz
Polar Pattern: Cardioid
Output Impedance: PGA52: 150 ohms PGA56: 200 ohms PGA57: 150 ohms PGA81: 600 ohms
Cable: None
Sensitivity: PGA52: -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL @ 1 kHz - open circuit voltage PGA56: -57 dBV/Pa (1.45 mV) 1 Pa=94 dB SPL @ 1 kHz - open circuit voltage PGA57: -56 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL @ 1 kHz - open circuit voltage PGA81: -48 dBV/Pa (3.8 mV)
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Output Connector: 3-pin XLR male
Power Requirements: PGA52: N/A PGA56: N/A PGA57: N/A PGA81: 48 VDC phantom power (2.0 mA)
Operating Temperature: -20 to 165 degreesF (-29 to 74 degreesC)
Operating Humidity: 0 to 95%
Dimensions: Not specified by manufacturer
Weight: PGA52: 16.01 oz (454 g) PGA56: 10.12 oz (287 g) PGA57: 9.9 oz (280 g) PGA81: 6.6 oz (186 g)
