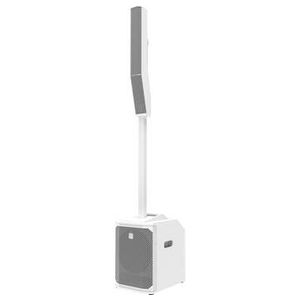

Electro-Voice EVOLVE 50M Portable PA Column Array

The Electro-Voice EVOLVE 50M Portable PA Column Array is part of the EVOLVE 50M portable PA system - which consists of a powered subwoofer - magnetic speaker pole - and the column array The column array utilizes eight 35 neodymium drivers with a custom-designed waveguide - which provides consistent (120 degrees) horizontal coverage The column speaker array is powered by the subwoofer's integrated 1500W amplifier - which delivers 750W to the column arraySystem setup is simple and fast Slide the magnetically locking mounting pole into the appropriate hole on top of the subwoofer - then place the column speaker array on the pole You don't have to run cables between the sub and speaker array audio connectivity between them is made via internal cabling in the mounting pole The column array ships with the sub pole and a carrying case

Features: For Portable, Wireless Sound Setups, Eight 3.5-inch Neodymium Drivers, Freq Response (w/ Sub): 43 Hz to 20 kHz, Custom Waveguides for Wide Coverage, Includes Carrying Bag, Powered by EVOLVE 50M Active Subwoofer, 750W of Class-D Amplification (HF), Magnetically Locking Mounting Pole, Pole Includes Wire Assembly, Dispersion: Horizontal/Vertical 120°/40°

Speaker Configuration: 2-Way Loudspeaker

Amplifier Power Rating: Total:1500 W HF:750 W LF:750 W

Amplifier Class: Class-D

Enclosure Type: Sealed

HF Driver: 8x 3.5-inch / 8.9 cm

Subwoofer Driver: 1x 12-inch / 30.5 cm Woofer

Crossover: 200 Hz

Semi-Parametric EQ: No

Effects: Delay

DSP: Yes

Filters: No

Frequency Range: System:37 Hz to 20 kHz -10 dBHF Driver:200 Hz to 20 kHz -3 dB

Maximum SPL: 129 dB (Continuous)

Coverage Angle: 120 degrees H x 40 degrees V

Protections: No

Audio I/O: 4x Combo XLR-1/4-inch TRS Mic/Line Input2x Combo XLR-1/4-inch TRS TRS Line Input1x 1/8-inch / 3.5 mm TS TS Hi-Z Input1x Stereo 2RCA TS Aux Input1x 1/8-inch / 3.5 mm TRS TRS Aux Input1x XLR 3-Pin 3-Pin Mix Output/Thru1x XLR 3-Pin 3-Pin Aux Output

Phantom Power: +48 V

USB I/O: No

Mobile App Compatible: Yes: Android & iOSApp Name: EV Quick SmartFunctionality: Adjust Settings - Remote Control

Network I/O: 1x RJ45 (Network) In/Out

Wireless: Bluetooth

AC Input Power: 100 to 240 VAC - 50 / 60 Hz

Power Supply Output: Included

AC Power I/O: IEC

Transport Options: 1x Handle (Top)

Construction Material: Aluminum - Composite - Metal Grille

Environmental Resistance: No

Dimensions: Top Speaker:32.5 x 6.4 x 4-inch / 825 x 163.6 x 102 mm Stand:36.6 x 2.2 x 1.9-inch / 929 x 55 x 48.5 mm

Weight: Top Speaker:10.47 lb / 4.75 kg Stand:2.4 lb / 1.1 kg
